SKT105E
Specifications
Being equipped to face the challenges of the tomorrow means harnessing the innovations of today. The strides we at SANY have made in electric machinery engineering has made investing in green machinery easier, and more profitable, than ever before.

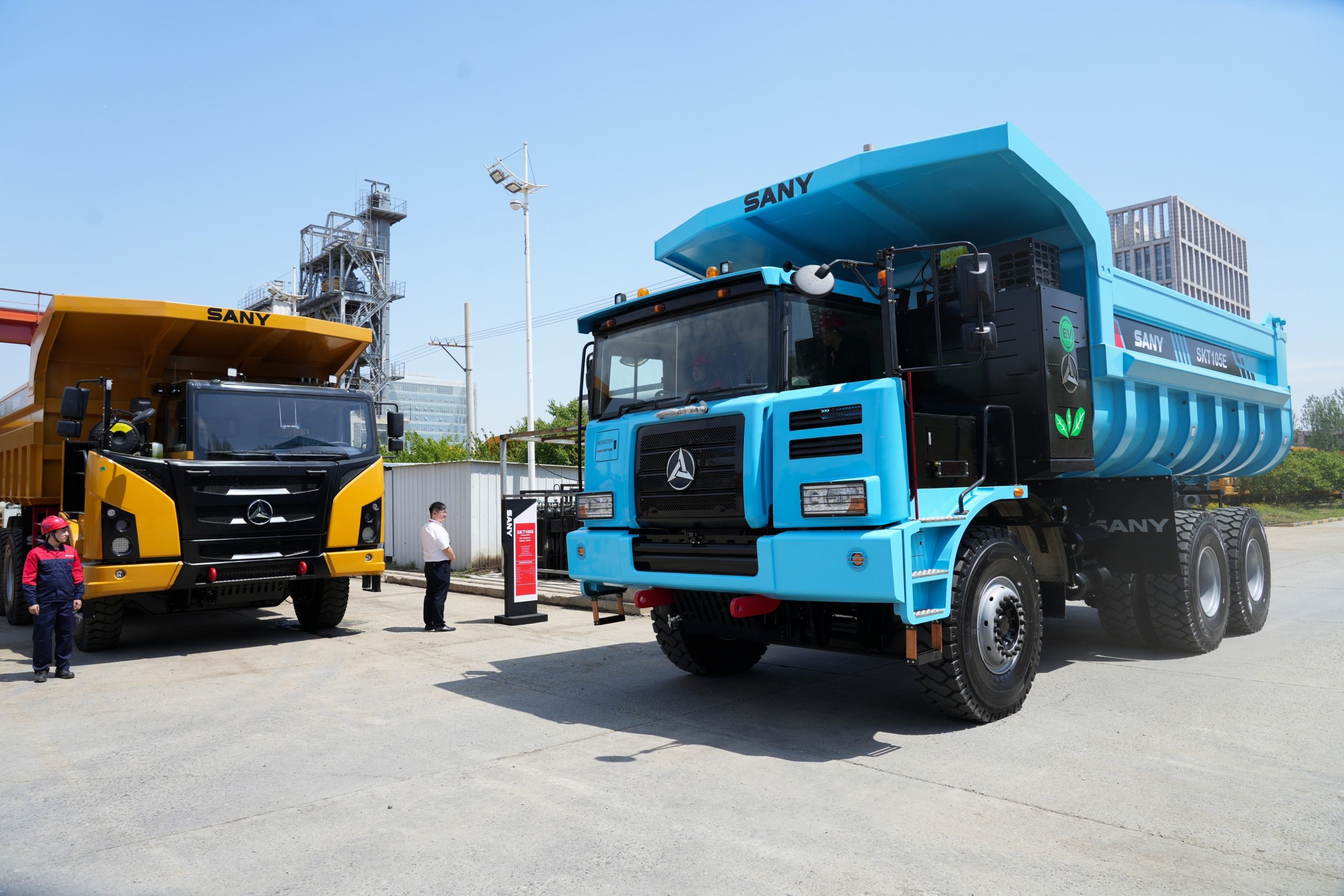

The SKT105E is a 100% fully electric widebody truck suited for mining- and quarry operations in harsh environments. Fitted with either a 564 or a 642kWh battery from industry leading CATL along with the ability to freight 72 tonnes each trip makes this truck suited for all heavy industry operations.
| Effekt Nom/Max | 570/820 kW | |
| Axle | 25+40+40(t) | |
| Net Weight | 38 T | |
| Drive per load | >160 km/ charge (8% slop heavy loaded downhill) | |
| Charge time | 1.2 hours (SOC 25%-95%) | |
| Top speed | 30 km/h | |
| Gearbox Type | Double 3-gear AMT | |
| Load Weight | 72T | |
| Lubrication System | Automatic lubrication system | |
| Max. Gradeability | 35 % | |
| Maximum Torque | 1600/2430Nm. | |
| Min. Turning Radius | 13000 mm | |
| Automatic/Manual | Automatic | |
| Capacity (Struck/Heaped) | 40 m³; Heaped: 46 m³ | |
| Warranty battery | 5 years or 200 000 km | |
| Warranty electric motors and drive systems | 3 years or 150 000 km | |
Benefits & Features
High-strength Frame
The newly designed low-stress and high-strength frame effectively prevents the fatigue breakage of the frame and reduces the overall stress level by 51% compared with competing products.
Hydro-Pneumatic Suspension
The hydro-pneumatic suspension technology is applied to replace the traditional leaf spring structure, remarkably improve the life and comfort of the machine, thoroughly solve the frequent breakage problem of front suspension leaf springs in the industry, and promote the attendance rate of the machine. The hydro-pneumatic suspension features excellent shock-absorbing and damping performance to remarkably improve the load application of the frame and prolong the life of the frame.
Oil And Gas Suspension
Front oil and gas suspension, buffer, and vibration reduction are significantly improved; greatly reducing the impact force of the frame, cab, and other heavy parts, reduce the occurrence of various faults, and extend the life of the vehicle; thoroughly solve the fracture problem of the front plate spring.
Full Hydraulic Steering and Emergency Steering
The vehicle steering makes it easier to solve the problem of heavy mechanical steering caused by heavy trucks in the industry; equipped with emergency steering, to solve the problem of steering failure after engine flameout or steering pump failure.
Intelligent Electrical System
SANY intelligent control module with an electrical fault self-diagnosis system can troubleshoot some problems automatically.
10 “central control screen equipped with reversing camera, Bluetooth connection, compatible with intelligent mine management system. The built-in GPS module can effectively monitor the vehicle operation.
Battery
High-density lithium iron phosphate battery specially designed for
mining areas, with high safety and long cycle life. The battery pack
adopts a customized die-casting aluminum shell, greatly improving the
shock resistance.
